In the world of piping, "Schedule" (often abbreviated as SCH) refers to the wall thickness of a pipe. While both Schedule 40 and Schedule 80 are made from the same Polyvinyl Chloride material, their physical dimensions and performance capabilities differ significantly.
1. The Core Difference: Wall Thickness
The most important thing to understand is that for any given pipe size, the Outer Diameter (OD) remains the same. The difference lies in the Inner Diameter (ID).
-

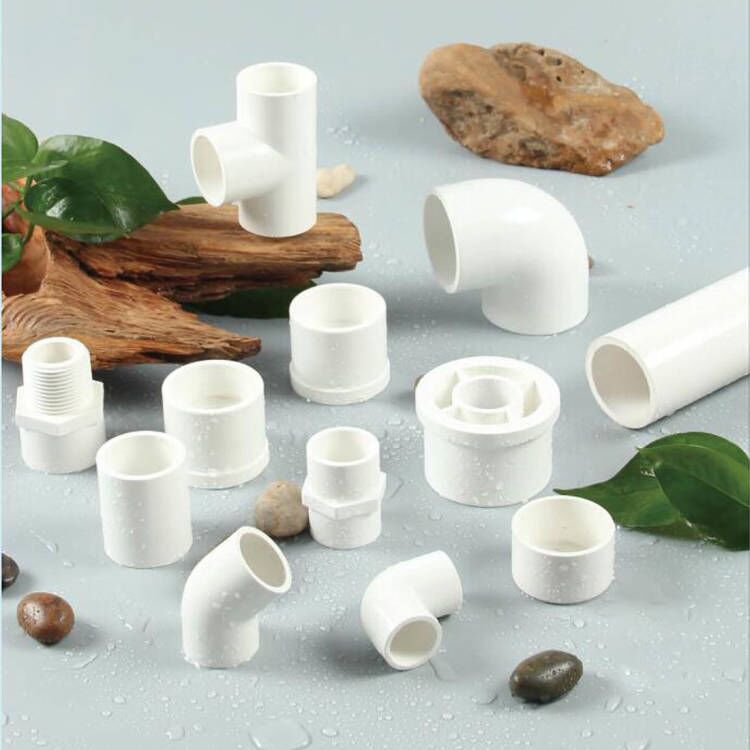

PVC pipe fitting SCH40 has thinner walls and a larger interior opening.
-

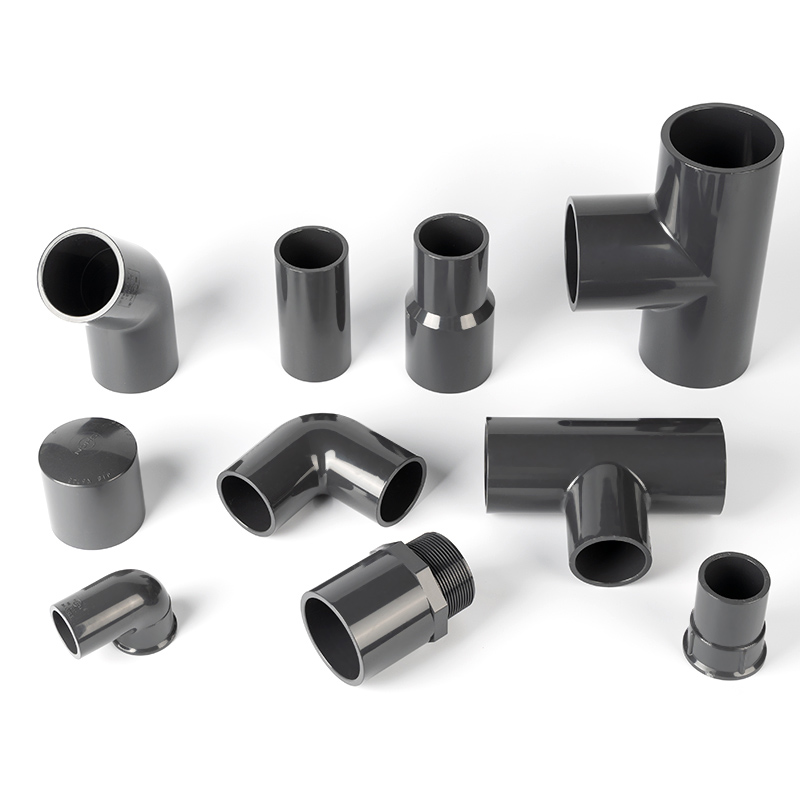

PVC pipe fitting SCH80 has thicker walls, which results in a smaller interior opening (tighter flow path).
2. Comparison Table: At a Glance
| Feature | PVC Schedule 40 | PVC Schedule 80 |
| Color Standard | Usually White | Usually Dark Grey |
| Wall Thickness | Thinner | Thicker |
| Pressure Rating | Moderate (Standard Use) | High (Industrial Use) |
| Internal Flow | Higher volume (larger ID) | Lower volume (smaller ID) |
| Threading | Cannot be threaded | Can be threaded |
| Relative Cost | Lower (Budget-friendly) | Higher (More material used) |
3. Technical Specifications (Sample Dimensions)
This table illustrates how the wall thickness changes while the outside of the pipe stays the same size.
| Nominal Pipe Size (NPS) | Outside Diameter (OD) | SCH 40 Wall / Inside ID | SCH 80 Wall / Inside ID |
| 1/2" | 0.840" | 0.109" / 0.622" | 0.147" / 0.546" |
| 1" | 1.315" | 0.133" / 1.049" | 0.179" / 0.957" |
| 2" | 2.375" | 0.154" / 2.067" | 0.218" / 1.939" |
| 4" | 4.500" | 0.237" / 4.026" | 0.337" / 3.826" |
4. Pressure Ratings
Because PVC pipe fitting SCH80 is thicker, it can handle significantly higher water pressure.
Example: At 23°C (73°F), a 2-inch SCH 40 pipe is rated for 280 PSI, while a 2-inch SCH 80 pipe is rated for 400 PSI.
5. When to Choose Which?
Use PVC Schedule 40 Pipe for:
-
Residential Plumbing: Drainage, Waste, and Vent (DWV) systems.
-
Irrigation: Garden sprinkler systems and golf course water lines.
-
Pools & Spas: Standard pool filtration piping.
-
Cost-Sensitive Projects: Where high pressure or chemical stress is not a factor.
Use PVC Schedule 80 Pipe for:
-
Industrial Applications: Chemical processing and heavy-duty manufacturing.
-
High-Pressure Systems: Where the fluid pressure exceeds the limits of SCH 40.
-
Mechanical Strength: In areas where the pipe is exposed and likely to be hit or stepped on (the thicker wall provides more impact resistance).
-
Threaded Connections: If you need to cut threads directly into the pipe, you must use SCH 80. SCH 40 walls are too thin for safe threading.
Summary
If you are working on a home project or a backyard garden, PVC pipe fitting SCH40 is usually the most efficient and cost-effective choice. However, for industrial settings or any system requiring threaded joints and high pressure, PVC pipe fitting SCH80 is the industry standard for safety and durability.
